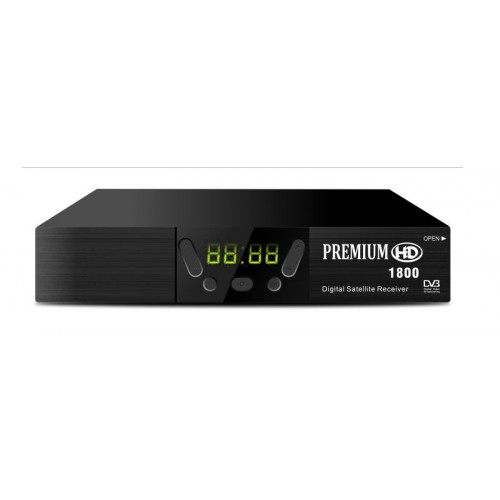

RECEIVER 1800 FULL HD

Turner & Demodulation

Tuner Type

DVB-S / DVB-S2

Input Connector

F-type, Connector, Female

Signal Level

-65 to -25 dBm

LNB Power & Polarization

Vertical: +13V/+14V
Horizontal: +18V/+19V

LNB Current

Max. 400mA with Overload Protection

22KHz Tone Frequency

22 +/-1KHz

DiSEqC Control

Versions 1.0, 1.1, 1.2, USALS

Demodulation

QPSK, 8PSK

Input Symbol Rate

2 – 45 Mbps,

FEC

1/2, 2/3, 3/4, 5/6, 7/8 and Auto

MPEG TS A/V Decoding

Transport Stream

MPEG-2/4, H.265

Input Rate

Max.120Mbit/s

Aspect Radio

4:3, 16:9, Letterbox

Video Decoding

MPEG-2, MP@ML, MPEG-4 part 10/H264

Video Resolution

720*480P/I, 720*576P/I, 1280*720p, 1920*1080i, 1920*1080p

Audio Decoding

MPEG-1 layer I/II, MPEG-2 layer II, Dolby digital

Audio Mode

Left / Right / Stereo/ Mono

Sampling Rate

32, 44.1 and 48KHz

Power Supply

Input Voltage

120-240V AC

Power Consumption

18W Max

Stand-By Power Consumption

<0.5W

A/V & Data Input/Output

RCA A/V

Video CVBS output, Audio L/R output

RS-232C

Transfer rate 115.2Kbps, 9 pin D-sub Type

USB

Two USB 2.0 slots: Side / Rear

S/PDIF

Optical

HDMI

VER1.3, Type A
